Installation Guide for HDPE Corrugated pipe part 4

Juli 24, 2020 by admin in Events, Industry News, Tips

• The concrete collar is formed by joining the two ends of the pipe with
tightly, wrapping the junction with geotextiles for
prevent most of the soil and concrete, and then
pouring a concrete collar that covers both ends of the pipe.
Another option might be to use fittings or adapters that are specifically designed for this application. Available fitting options are designed to make the transition from one material to another. In other cases fittings may need to be used in combination with other manufacturers’ gaskets or couplers to complete the transition. Transitions made in this way can provide a higher performance connection than concrete collars.

Penyambungan Manhole dan Bak Penampungan

Manhole or container can be used on changes in pipe material, size, flatness, direction and height. Drainage and receptacle can be more expensive than other alternatives, but also allow changes in level and direction in addition to changes in material and pipe size.
• Local regulations must be consulted to determine whether a sinkhole or reservoir is needed for any or all pipe changes.

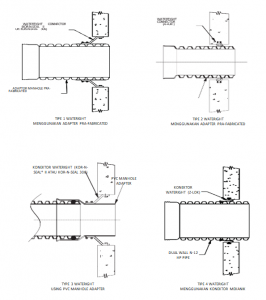

• See Figure 4 for an acceptable method for connecting a plastic pipe to a hole or tub.
• See the appendix for reference to additional product-specific resources that apply to connecting pipes to manholes.

Product Details for Manhole Connections
